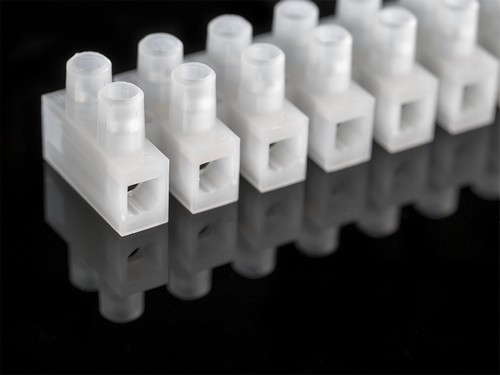

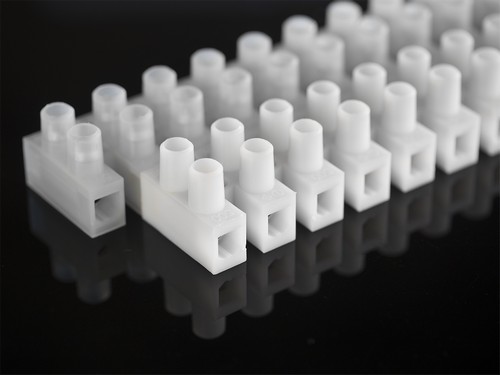

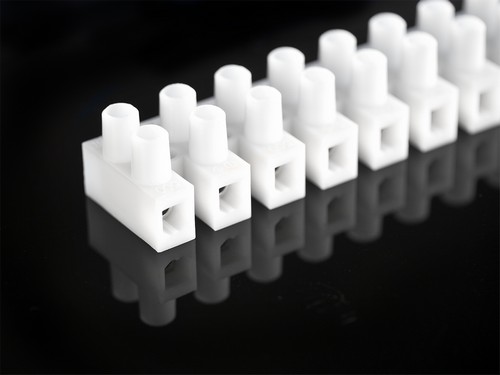

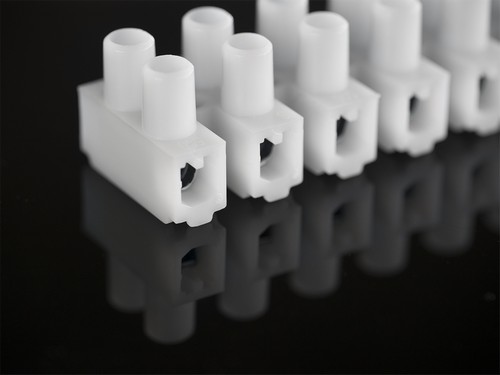

Connector 230 / 500 / 830 Connector
Technical Data
| Type no. | 230 230WP 230S |
500 500WP 500S |
830 830P |
|
|---|---|---|---|---|
| Housing | Fire Retardant High Temperature Thermoplastic |
|||
94V-2 grade |
||||
| Insert | Brass, Nickel plated |
|||
| Screw | Zinc plated steel, blue chromated |
|||
| Voltage (V) | 450 |
450 |
500 |
|
| Ampere (A) | 17.5 |
24 |
41 |
|
| Temperature | -40℃ to 100℃, up to 140℃ (for high resistant 230TH, 500TH, 230WPTH, 500WPTH only) |
|||
| Cross section (mm²) | 2.5 |
4 |
6 |
|
| - AWG up to | 14 |
12 |
10 |
|
| Dimension (mm) | ||||
| (a) Length | 93.5 |
116.5 |
139.5 |
|
| (b) Height | 15.5 |
16.5 |
19.5 |
|
| (c) Width | 17.7 |
20.0 |
23.8 |
|
| (d) Fixing hole | 2.9 |
3.5 |
3.6 |
|
| (e) Wiring hole | 2.9 |
3.45 |
4.2 |
|
| (f) Pitch | 8 |
10 |
12 |
|
| (g) Screw size | M2.6x5.4 |
M3x6 |
M3.5x7.2 |
|
