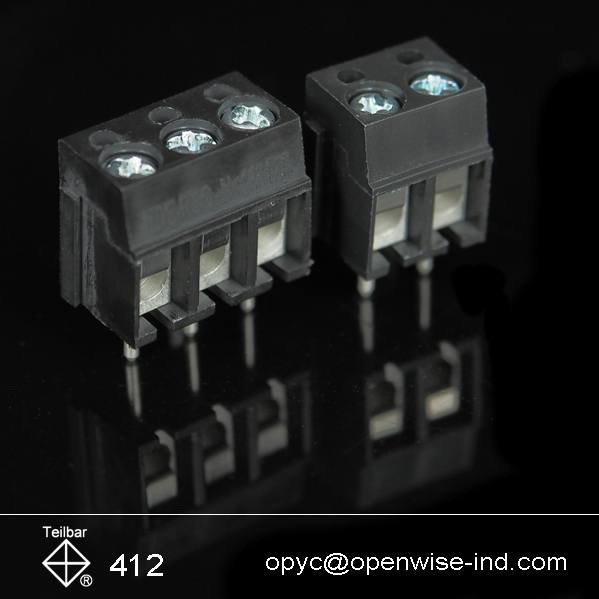

PCB Terminal 412 PCB Terminal
Technical Data
| Housing | Polyamide 6/6 |
|---|---|
94V-0 grade |
|
| Insert | Brass/tin-plated |
| Wire Protector | Stainless steel |
| Screw | M3 x 5.2, blue chromated |
| Voltage / Ampere | 450V / 12A |
| Voltage / Ampere (UL) | 300V / 12A |
| Pin spacing | 5.0mm |
| Wiring | 0.5 – 1.5mm² / AWG 22-16 |
| Temperature | |
| Working | -40℃ to 120℃ |
| Short Period | 140℃ |
