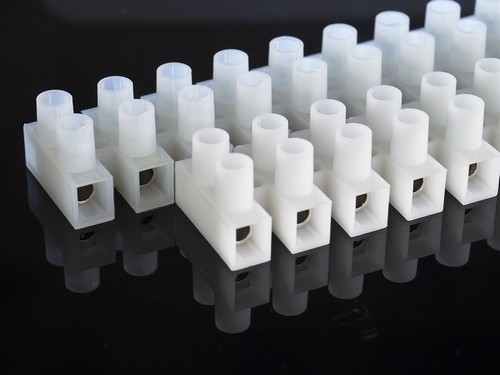

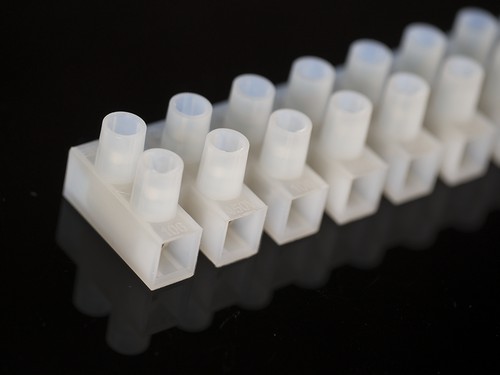

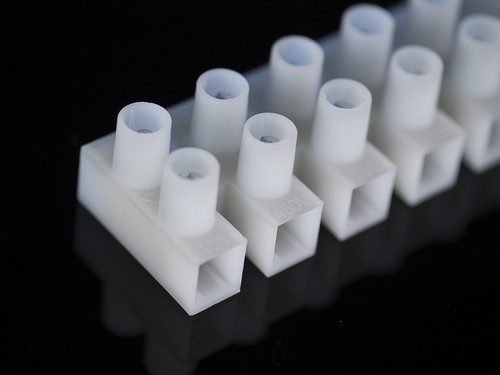

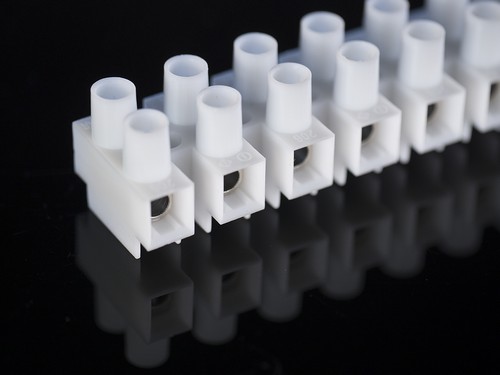

Connector 1 Series Connector
Technical Data
| Type no. | 103/103NCL |
104/104NCL |
106/106NCL |
110/110NCL |
116/116NCL |
125/125NCL |
|
|---|---|---|---|---|---|---|---|
| Housing | Fire Retardant High Temperature Thermoplastic 94V-2 grade |
||||||
| Voltage (V) | 250V |
450V |
450V |
450V |
750V |
750V |
|
| Ampere (A) | 10 |
17.5 |
24 |
41 |
76 |
101 |
|
| Cross section | 1.5mm² |
2.5 mm² |
4mm² |
10 mm² |
16 mm² |
25 mm² |
|
| AWG | 16 |
14 |
12 |
8 |
6 |
4 |
|
| Dimension (mm) | |||||||
| (a) Length | 92.35 |
93.5 |
116.5 |
139.5 |
169.8 |
194.4 |
|
| (b) Height | 11 |
12.3 |
14.5 |
16.2 |
20.8 |
26.5 |
|
| (c) Width | 15 |
17.7 |
20.0 |
23.8 |
28.0 |
37.0 |
|
| (d) Fixing hole | 2.55 |
2.9 |
3.5 |
3.6 |
4.3 |
4.3 |
|
| (e) Wiring hole | 2.5 |
2.9 |
3.45 |
4.2 |
6 |
7.2 |
|
| (f) Pitch | 7.85 |
8 |
10 |
12 |
14.5 |
16.5 |
|
| (g) Screw size | M2.6 x 4.2 |
M2.6 x 5.4 |
M3 x 6 |
M3.5 x 7.2 |
M4 x 9 |
M5 x 11 |
|
