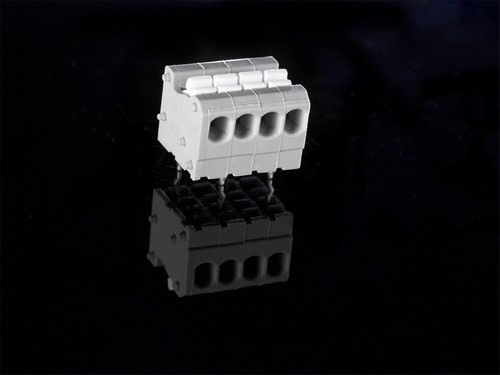

PCB Terminal 673 PCB Terminal
Technical Data
| Housing | Polyamide 6/6 |
|---|---|
94V-0 grade |
|
| Insert | Brass/tin-plated |
Stainless steel |
|
| Voltage / Ampere | 250V~750V/2A |
| Voltage / Ampere (UL) | 300V/2A |
| Dielectric Strength | 4kV (Max) |

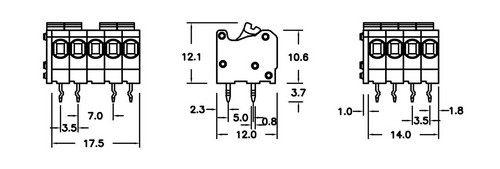

| Pin Spacing | 3.5mm / 7.0mm |
| Wiring | 0.5-1.5mm² / AWG 20-18 |
| Number of Poles | Up to 48 |
| Temperature | |
| Working | -40℃ to 120℃ |
| Short Period | 140℃ |
