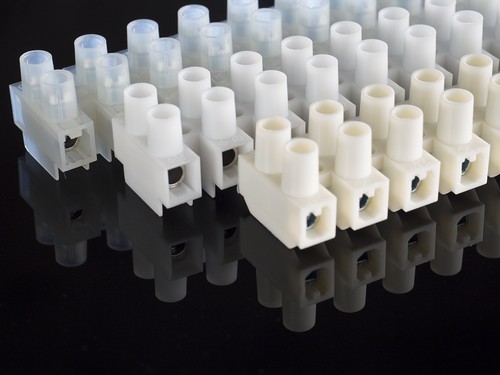

Type no. | 204/204TH |
206/206TH |
210 |
216 |
---|---|---|---|---|
Housing | Fire Retardant High Temperature Thermoplastic |
|||
94V-2 grade |
||||
Insert | Brass, Nickel plated |
|||
Screw | Zinc plated steel, blue chromated |
|||
Voltage | 600V |
600V |
600V |
600V |
Ampere (IEC) | 17.5 |
24 |
41 |
57 |
Ampere (UL) | 25 |
30 |
35 |
63 |
Cross section | 2.5mm² |
4 mm² |
6 mm² |
16 mm² |
AWG | 14 |
12 |
10 |
6 |
Temperature | ||||
Working | -40℃ to 100℃, up to 130℃ (for high resistant 204TH, 206TH, 204WPTH, 206WPTH only) |
|||
Short period | 140℃ |
|||
Dimension (mm) | ||||
(a) Length | 93.5 |
116.5 |
139.5 |
175.5 |
(b) Height | 17.5 |
18.0 |
22.5 |
26.0 |
(c) Width | 18.0 |
19.0 |
23.5 |
28.0 |
(d) Fixing hole | 2.9 |
3.6 |
4.3 |
4.5 |
(e) Wiring hole | 2.9 |
3.45 |
4.2 |
6.0 |
(f) Pitch | 8 |
10 |
12 |
15 |
(g) Screw | M2.6 x 5.4 |
M3 x 6 |
M3.5 x 7.2 |
M4 x 9 |
