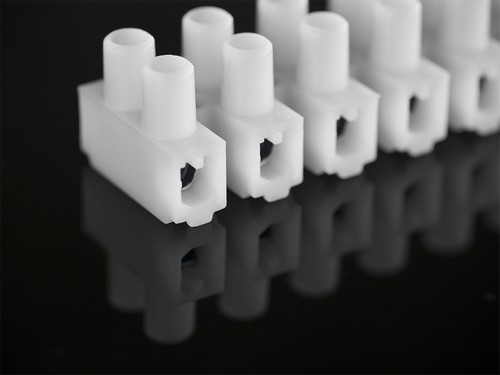

Connector 230S & 500S series Connector
Technical Data
| Type no. | 230S |
500S |
|---|---|---|
| Housing | Fire Retardant High Temperature Thermoplastic |
|
94V-2 grade |
||
| Insert | Stainless steel |
|
| Screw | M2.6 x 5.4 |
M3 x 6 |
| Voltage / Ampere | 450V / 17.5A |
450V / 24A |
| Working temperature | -40℃ to 100℃ |
|
| Short period temperature | 140℃ |
|
| Cross section | 2.5mm² |
4 mm² |
| AWG | 14 |
12 |
| Dimension (mm) | ||
| a) Length | 93.5 |
116.5 |
| b) Height | 15.6 |
16.6 |
| c) Width | 17.7 |
20.0 |
| d) Fixing hole | 2.9 |
3.5 |
| e) Wiring hole | 2.9 |
3.7 |
| f) Pitch | 8 |
10 |
