Products

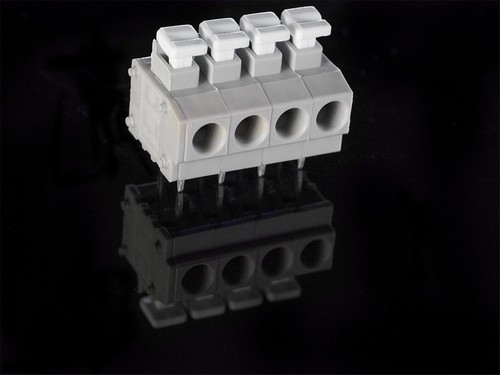

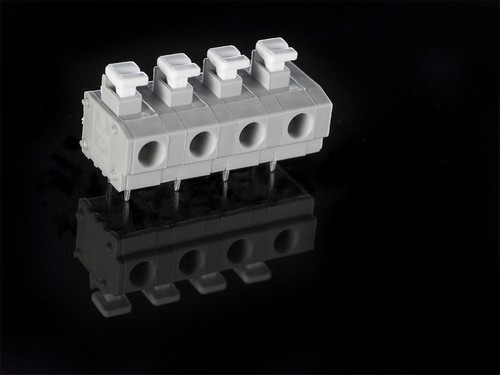

PCB Terminal 675 PCB Terminal

Technical Data

Housing
Polyamide 6/6
94V-0 grade
Insert
Brass/tin-plated
Stainless steel
Voltage / Ampere
450V / 10A
Voltage / Ampere (UL)
300V / 10A
Pin spacing
3.81mm / 5mm / 7.5mm / 10mm
Dual
2 x 0.25 - 0.75mm² / AWG 24-18
Cross Section
Single
0.5 - 2.5mm² / AWG 20-14
Temperature
Working
-40℃ to 120℃
Short Period
140℃
